Sercem naszych rozwiązań dla palaczy jest Nasz skuteczny system filtrowania i wentylacji, centralny element we wszystkich naszych kabinach wewnątrznych i na zewnątrz.
Konwencjonalne pomieszczenia do palenia są zwykle słabo wentylowane, rzadko sprzątane i często towarzyszy im nieprzyjemny zapach. Nasze urządzenia do palarni zapewniają łatwą, skuteczną i wysoce konfigurowalną naprawę tego problemu.
Jednostki wolnostojące oferują prawie nieograniczone kombinacje i mogą być dostarczane z popielniczkami lub bez, w zależności od konfiguracji pomieszczenia.

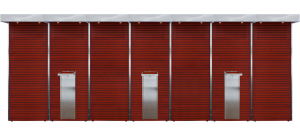

3SR65 ELEVATION
3SR65 PRODUCT INFORMATION
TECHNICAL INFORMATION |
| Dimensions (W x D x H) – Weight incl. filters | 820 x 920 x 2200 mm – ≅ 200 kg |
| Main housing material | Frame housing: Steel SPCC 1.5mm
Front: Medium Density Fiberboard (MDF) |
| Main housing colours | Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colours are optional
Front: Grey-Mahogany, Black-Mahogany,Grey-Maple, Black-Maple, Grey-Walnut and Black-Walnut |
| Fireproofing | Non-flammable materials |
| Power requirements – Consumption | 220-240 V, 50/60 Hz – Standby: ≤ 40 W – Max speed: ≤ 500 W |
| Sound pressure/power per fan speed | When in stand-by 41.5 dB – When running 49.5 dB |
| Fan motor | Centrifugal, backward curved, IP54, Class “F” |
| Control | Control unit for airflow, sensors, timers and lights. |
| Air intake/outlet | Suction from front panel / Perforated slot hole from top roof |
| Air delivery | 100-1200m3/h |
| Air delivery (certified) | 15-200 times/h |
| Leak tested | Yes |
| Total system efficiency (certified) | ≥ 99.95% for particles ≥ 0.3 microns (µm) |
| Fireproof ashtray system capacity
|
3,500 cigarettes. Ashtray with one inlet. (Included with standard unit)
7,000 cigarettes. Two ashtrays with two inlets. 7,000 cigarettes. Large ashtray with one inlet. 14,000 cigarettes. Two large ashtrays with two inlets. Safe ash handling system. Fireproof. No odours. |
| Simultaneous smokers / Area | 4 persons / up to 20 m² |
| Certification | CE – According to DIN EN 13823, DIN EN 1364-1 – Tested and approved by BGIA
ISO certification in 2018: ISO 9001 and ISO 14001 |
FEATURES |
| Adjustability | Variable air flow speeds for stand-by and running modes. |
| Power saving | Sensor activation by entrance into the cabin reduces power consumption. |
| Modular construction | Easy to reduce or expand cabin size. Freestanding and movable. |
| Customisation | LCD screen, foot rest, stickers, colours, filters etc. |
